SMTCL CNC Turning Center HTC40Hm Large Span Spindle Unit CNC Lathe With Y-Axis Bar Feeder

Key word : Horizontal CNC Turning Center

Brand Name : SMTCL

Model Number : HTC 40Hm/500

Certification : CE ISO certification

Place of Origin : CHINA

MOQ : 1

Supply Ability : 50 sets per month

Delivery Time : 45-60 days

Packaging Details : The wooden case，Tin trunk ,Other seaworthy packing

Max. swiming dia.over bed : 560mm

Max. cutting dia. : 350mm

Z axis travel : 510mm

Spindle speed : 4500 r/min

Payment Terms : T/T,L/C,Western Union

X axis travel : 220mm

CNC or Not : CNC

Max.cutting length : 450mm

Contact Now

SMTCL CNC Turning Center HTC40Hm Large Span Spindle Unit CNC Lathe With Y-Axis Bar Feeder

Product Description:

SMTCL CNC Turning Center HTC40Hm Large Span Spindle Unit Cnc Lathe With Y-Axis
HTC40Hm horizontal turning center has been assembled and improved through scientific analysis,optimization and advanced manufacturing and testing technologies. It has excellent cutting performance and can meet the processing requirements of various rotary parts. Equipped with a servo-driven turret, it can realize processing methods such as turning,
milling and drilling. It can also be equipped with a servo-driven tailstock module. The tailstock can tightly abut at high speed without impact, and the abutting force can be intelligently adjusted. It features high machining accuracy and good stability, andis suitable for processing parts in many industries.

Product Features:

1,High Efficiency

◆ High-efficiency servo power tool holder
◆ Split servo tailstock
◆ High rapid movement speed of two axes
◆ Optional Y-axis configuration to achieve multi sequence integrated processing

2,High Precision
◆ High-precision pre-stretched screw
◆ Error compensation technology
◆ Quantification of process standards
◆ Strict inspection standards
3,High Rigidity
◆ Machine bed and other key castings made of high -quality cast iron
◆ Large span spindle unit
◆ Arc-shaped anti-bending saddle
◆ Small spindle structure tailstock

Feature 1: Precision manufacturing, stable & reliable
525 quality inspection items, doubled compared with original standards
New intelligent testing process definesa brand-new standard

SMTCL CNC Turning Center HTC40Hm Large Span Spindle Unit CNC Lathe With Y-Axis Bar Feeder

Evaluated by third-party testing institutions,overall performance has reached the levelof Japanese benchmark equipment

SMTCL CNC Turning Center HTC40Hm Large Span Spindle Unit CNC Lathe With Y-Axis Bar Feeder

Feature 2: Fully upgraded, superior performance
Comprehensive improvement in heavy cutting, U-drilling, hard turning, and finishing capabilities

SMTCL CNC Turning Center HTC40Hm Large Span Spindle Unit CNC Lathe With Y-Axis Bar Feeder

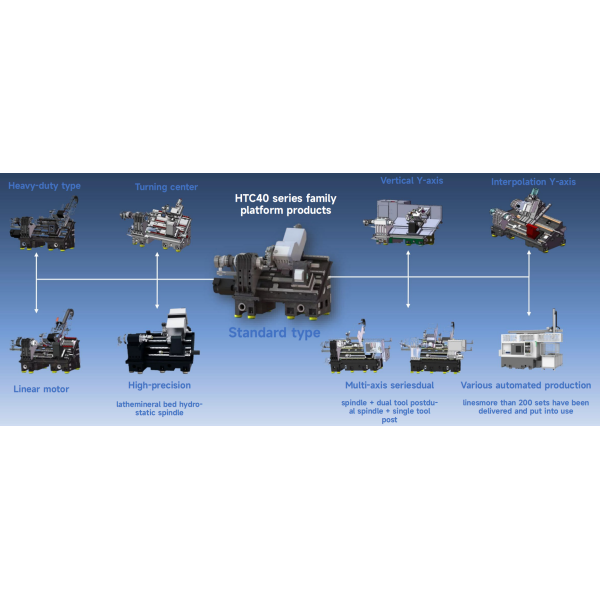

Feature 3: Platform development, full-domain adaptation
Excellent scalability: Electric spindle, heavy-duty type, turning center, vertical inproduction lines, etc., meeting customers' flexible configuration needs in various erpolation Y-axis, linear motor, high-precision turning, multi-axis series, automated scenarios

SMTCL CNC Turning Center HTC40Hm Large Span Spindle Unit CNC Lathe With Y-Axis Bar Feeder

Feature 4: Accumulated strength, high precision & efficiency
Efficient programming, unique interface
Efficient solutions, over 5000 accumulated schemes

SMTCL CNC Turning Center HTC40Hm Large Span Spindle Unit CNC Lathe With Y-Axis Bar Feeder

Comprehensive improvement in component precision,process precision, factory precision, and machiningprecision

SMTCL CNC Turning Center HTC40Hm Large Span Spindle Unit CNC Lathe With Y-Axis Bar Feeder


Product Details:


Rapid moving speed: 30m/min
The servo motor is directly connected to the ball screw through a coupling, reducing intermediate links and achieving gapless transmission. The X and Z-axis guide rails adopt imported linear rollingguide rails to ensure high rigidity, good dynamic performance and accuracy, increase operating speed and improve production efficiency.



Split Servo Tailstock
The tailstock can be moved in an optional servodriven manner, which can precisely control and flexibly adjust the tailstock moving speed and working clamping force according to processing requirements, allowing the tailstock to quickly approach the workpiece and tighten without impact , and can provide real-time feedback on the tightening position.improve production
replacement efficiency. It adopts an upper and lower split tailstock ,easy to adjustment accuracy and improve maintenance efficiency.

Double fixed pre-tensioned structure
X axis develops a double fixed support structure and uses a pre-stretched screw to effectively offset pre-stretch deformation and temperature risedeformation. It cooperates with a special sealing structure to reduce the temperature rise of the screw, thereby achieving high precision and high precision of machine tool feed stability

Y axis configuration
Optional Y-axis configuration, combinedwith BMT powered turret, high-precision C -axis structure and a variety of poweredtool holders, can realize complex surface processing with once installation.

High precision ball screw
It uses high-quality imported C3-grade screw and H-grade guide rail, and is directly driven by servo motor to achieve excellent operating accuracy.

Anti-bending saddle
The guide rail span is reasonably enlarged,the motion system structure is optimized,and the main body of the bed saddle isdesigned in an arc shape to ensure theoverall rigidity of important components.

Efficient servo powered turret
Standard BMT interface, high rigidityconnection; the tool is driven by DIN1809 interface, which has reliable transmission and low failure rate;the drive motor is side-mounted and compact in structure; it is equipped with high-precision C axis and brake device to achieve high-efficiency integrated processing of turning, milling anddrilling.

Internal cooling tool holder
Optional internal cooling tool holder and water outlet from the tool center realize efficient chip removal during inner hole machining and ensure processing quality

Driven tool milling capability
Workpiece material: HT200
Tool model: Ф20 square shoulder
milling cutter
Cooling status: water cooling
Driven tool drilling capacity
Workpiece material: HT200
Tool model: Ф16 twist drill
Cooling status: water cooling


Product Paramenters:
Project
Unit
HTC 40H(Q)m/500
HTC 40H(Q)m/1000
Max. cutting dia.
mm
Φ350
Φ350
Max.cutting length
mm
450
950
Max. swiming dia.over bed
mm
Φ560
Φ560
Max. swiming dia.on slide
mm
Φ350
Φ350
Spindle



Spindle nose model

A2-6
A2-6
Front bearing inner dia.
mm
100
100
Spindle taper and hole size

1:20;Φ70
1:20;Φ70
Dia. of spindle hole

Φ65
Φ65
Max.bar dia.
mm
Φ50
Φ50
Standard chuck dia.
inch
8
8
Spindle speed range
r/min
4500
4500
Rated spindle torque
N·m
130(800r/min)
130(800r/min)
Spindle Max. torque
N·m
230(600r/min)
230(600r/min)
Main motor output power continuous/15 min.
kW
11/15
11/15
X/Z axis



X/Z axis rapid movement
m/min
30
30
X axis travel
mm
220
220
Z axis travel
mm
510
1000
Tailstock



Tailstock travel
mm
500
500
Tailstock drive method

Hydraulic drive
Hydraulic drive
Tailstock taper hole taper
Morse
MT-5
MT-5
Turret



Turret typle

Horizontal 12-station power turret
Horizontal 12-station power turret
Center height
mm
100
100
Turret indexing repeat positioning accuracy
Sec.
±1.6
±1.6
Tool size
mm
25
25
If could choose tool nearby

yes
yes
Power tool holder interface

BMT55
BMT55
Max. drilling capacity
mm
16×0.2
16×0.2
Max. milling capacity
mm
14×10×40
14×10×40
Max. tapping capacity
mm
M12×1.5
M12×1.5
Others



Distance between spindle center and floor
mm
1050
1050
Machine tool net weight
kg
4200
4750
Overall dimensions(LxWxH)
mm
2750×1920×2000
3620×1920×2000
Note: The parameters provided in the table are for reference only. If there is any change, please refer to the actual product.
Standard configuration:
1,FANUC-0i-TF Plus (5) System (Hm/Sm Series)
2,GSK988TA System (Qm Series)
3,Sleeve-type spindle
4,Hollow chuck oil cylinder
5,Horizontal 12-station power tool carriage

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected

2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery
Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
SMTCL CNC Turning Center HTC40Hm Large Span Spindle Unit CNC Lathe With Y-Axis Bar Feeder
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
