GX520L Slant CNC Turning Center 12 Station Power Turret Metal Turning lathe

  • 1
  • 2

Model Number : GX520L

Certification : ISO certification

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 40 sets per month

Delivery Time : 60-90days

Packaging Details : The wooden case，Tin trunk ,Other seaworthy packing

Brand Name : HD TECH

Product name : CNC Turning Center GX520L

Max swing over bed : 500mm

Max machining diameter (disc type) : 460mm

Max machining diameter (shaft type) : 300mm

Max processing length : 570mm

Distance between centers : 620mm

Spindle nose type : A2-6

Spindle motor power : 11kw

Bar diameter : 52mm

Weight : 4300kgs

Contact Now

Slant CNC Turning Center GX520L 4500rpm metal turning wholesale supplier manufactures

I.Product Main features
 1.The machine bed uses high precision optical laserinstrument to make pitch compensation to ensure the same positioning accurate of work piece.
 2. X,Z-axis puts to use linear guide way with high rgidity(Hiwin and PMI imported from Taiwan).Through calculation and analysis,track and track spacing use the best design,low resistance and high rigidity. X.Z-axis use high precision C3 grinding ball screw.Both sides of the fixed enduse 60°oblique angle ball bearing assistant support of the combinedtype of NSK or FAG. The two shaft ends use the pretension design to ensure working accuracy. The rapid movement is 30m/min.Thus it could increase the work efficiency and decrease processing time.
 3. The spindle uses Taiwan imported.NSK p4 grade angular ball bearing is installed inside the spindle.The assembly of the front 3 and the back 2 ensures rigidity and working accuracy for axial and radial direction.The contacting surtace for spindle and cabinet is scraped.Thus,during the high speed running of spindle,it could keep the spindle qulet,minimum vibration and good heat dissipation.

GX520L Slant CNC Turning Center 12 Station Power Turret Metal Turning lathe



II. Main Technical Parameters

NO. Item Unit Parameter
1 Max swing over bed mm 500
2 Max machining diameter (disc type) mm 460
3 Max machining diameter (shaft type) mm 300
4 Max processing length mm 570
5 Distance between centers mm 620
6 Spindle nose type   A2-6(A2-8 optional)
7 Spindle motor power KW 11
8 Chuck/rotating oil cylinder   8 inch
9 Spindle speed rpm 4500(A2-8 spindle 3000)
10 Spindle hole diameter mm 66(A2-8 spindle 80)
11 Bar diameter mm 52(A2-8 spindle 65)
12 X/Z axis screw specifications   4010/4010
13 X axis limit stroke mm 300
14 X/Z axis rail specifications   35/45
15 Z axis limit stroke mm 620
16 X/Z axis fast moving rate m/min 20
17 X/Z axis servo motor NM 18/18
18 Power axis servo motor NM 15
19 X/Z axis repeat accuracy mm ±0.003
20 X/Z axis positioning accuracy mm ±0.005
21 Turret   12-station power turret
22 Tailstock sleeve specification   MT-5
23 Tailstock sleeve stroke mm 100
24 Length*width*height mm 2770x1780x11945
25 Weight (approximate weight) kg 4300



III. Main Configuration List



Standard configuration
Accessories name Brand Remarks
CNC system Taiwan Syntec 22TA
Spindle driver Taiwan Syntec
X/Z axis servo motor Taiwan Syntec Bus control
Spindle Taiwan Luo Li/Dan Quan
Spindle bearing Japan NSK
Screw rod bearing joint venture THT
linear guide rail Taiwan PMI/HIWIN X axis: 35 rollers
Z axis: 45 rollers
ball screw Taiwan PMI/HIWIN X axis: 4010
Z axis: 4010
Hollow rotary cylinder made in China KEPUTE
Hollow hydraulic chuck Taiwan Qiandao/Tongfu
Axial power turret Taiwan Heart king kong
Automatic lubrication system made in China Hu Run/Liang Sheng
Cooling system Jing Jiang/Luo Kai
heat exchanger Lingji
Alarm lamp Domestic high quality
electrical Chint
Technical manual
Mechanical use and maintenance manual, electrical manual, certificate, packing list, system operation manual (electronic file), system programming manual (electronic file)

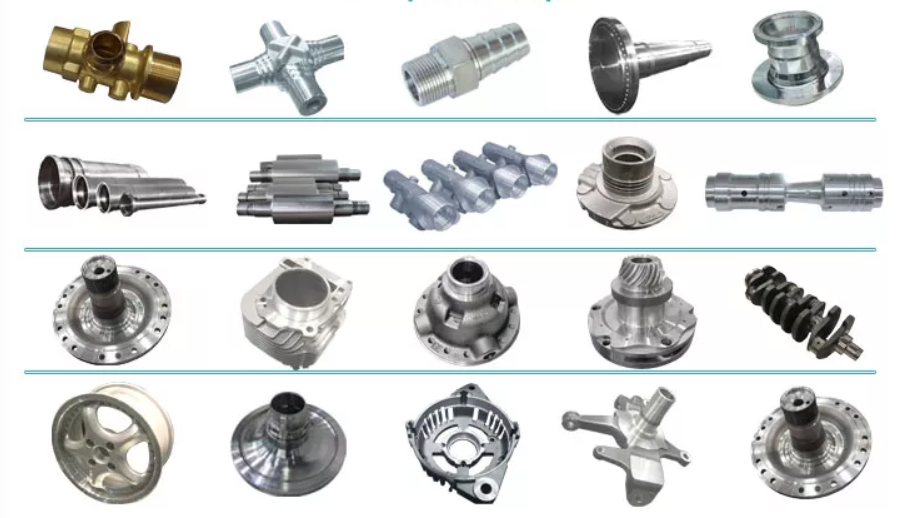

IV.Workpiece sample

GX520L Slant CNC Turning Center 12 Station Power Turret Metal Turning lathe

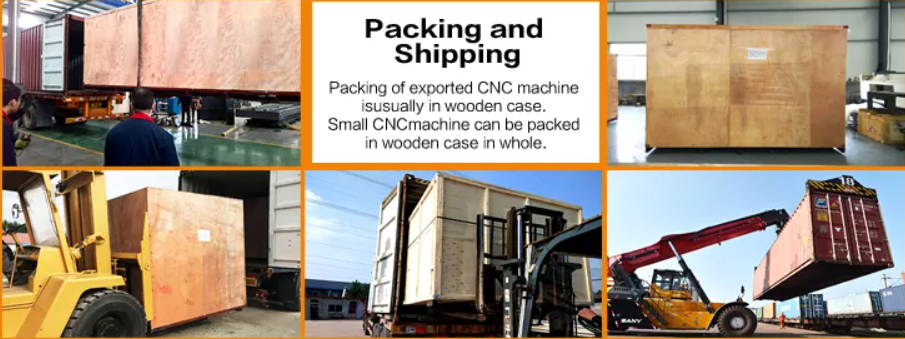

V. Packing and Shipping
